Features:
●The yield stength of Q235 is 235Mpa,which is strong enough;
●The Q235 has good welding and forming performance, which can avoid weld crack;
●The galvanized thickness is more than 75um, which can protec the plole from corrosion for more than 25 years;
●The powder coated color can be cutomized;
●Use standard maintenance door, which can lower the cost; it also can be customized;
●The anchor bolt position is fixed based on flange dimension, which is easy for pole assembly;
●The anchor bolt can be folded to save room for transportation.

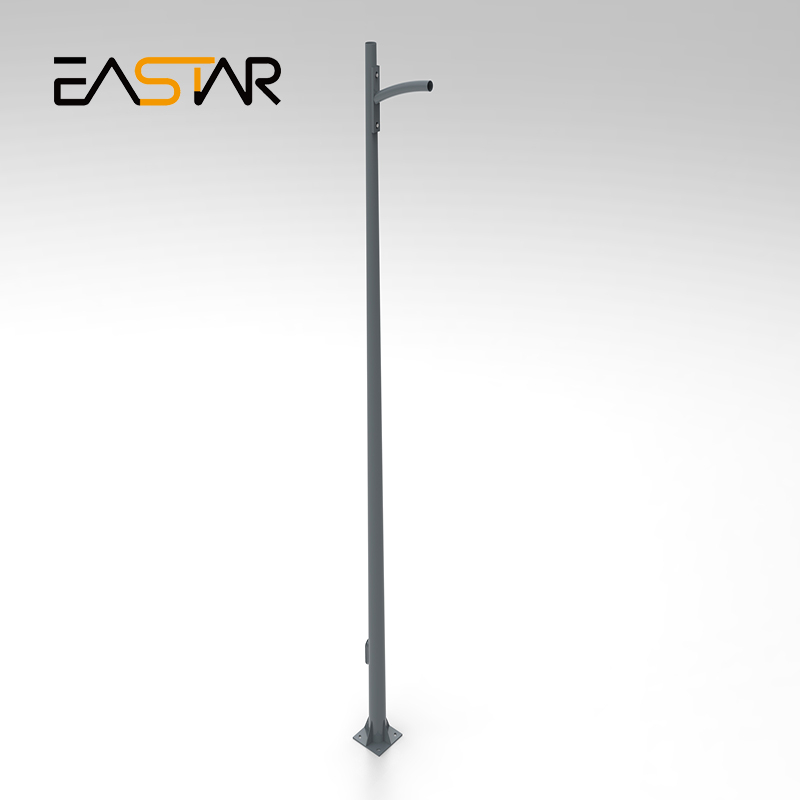

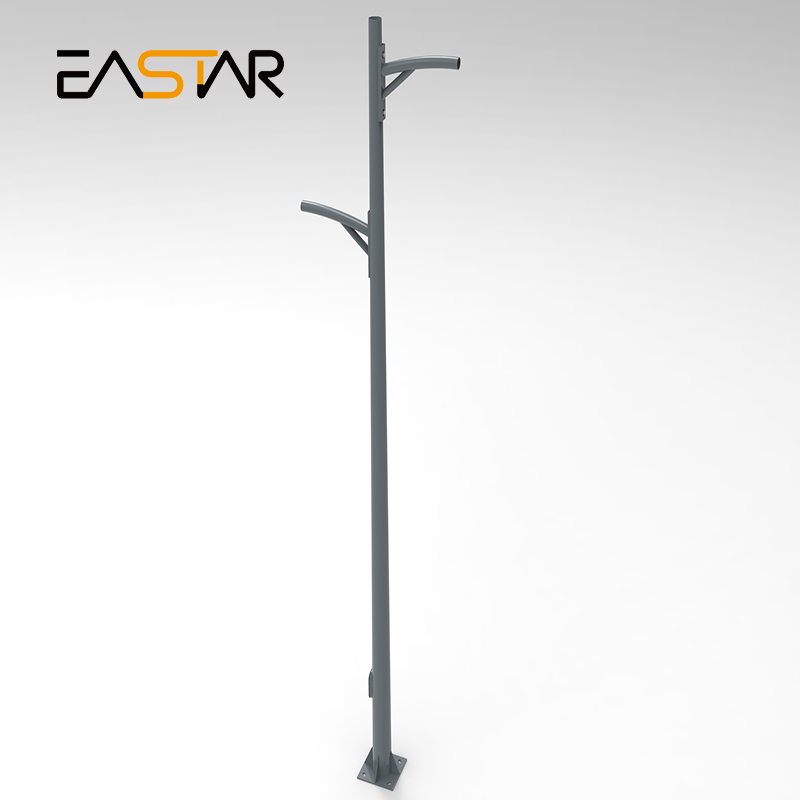

Pole Height H1 | 4m | 5m | 6m | 7m | 8m | 9m | 10m | 11m | 12m |
Shape | Conoid | ||||||||

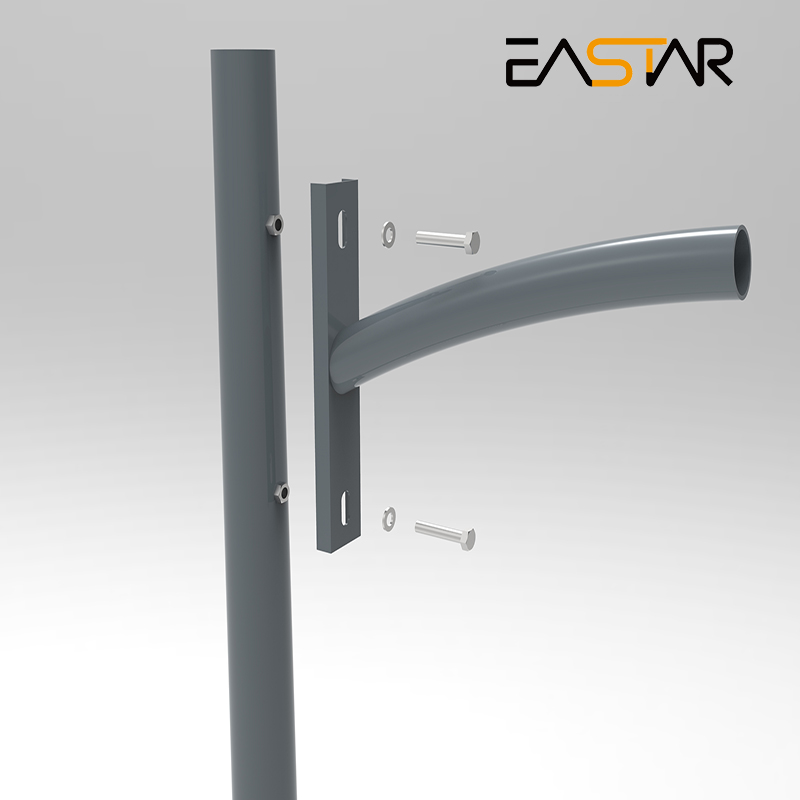

Arm Length H3 | 400mm | 500mm | 600mm | 700mm | 800mm | 900mm | 1000mm | 1100mm | 1200mm |
Arm Angle | 15° | ||||||||
Top Diameter D1 | φ60mm | φ60mm | φ60mm | φ60mm | φ60mm | φ60mm | φ60mm | φ60mm | φ60mm |
Bottom Diameter D2 | φ120mm | φ130mm | φ145mm | φ160mm | φ175mm | φ185mm | φ195mm | φ210mm | φ230mm |
Pole Thickness | 2mm | 2.3mm | 2.5mm | 2.75mm | 3mm | 3.25mm | 3.5mm | 3.75mm | 3.75mm |
Flange Size | 240*240mm | 240*240mm | 260*260mm | 280*280mm | 280*280mm | 300*300mm | 300*300mm | 320*320mm | 350*350mm |
Flange Thickness | 10mm | 10mm | 12mm | 14mm | 16mm | 18mm | 18mm | 20mm | 20mm |
Maintenance door Size | 170*70mm | 170*70mm | 170*70mm | 170*70mm | 170*70mm | 170*70mm | 200*100mm | 200*100mm | 200*100mm |
Maintenance door Height H2 | 300mm | 300mm | 300mm | 300mm | 500mm | 500mm | 500mm | 500mm | 500mm |
Anchor Bolts | 4-M12*400mm | 4-M12*450mm | 4-M14*500mm | 4-M16*600mm | 4-M18*650mm | 4-M20*700mm | 4-M20*750mm | 4-M24*800mm | 4-M24*850mm |
Tolerance of Dimension | ±2% | ||||||||
Material | Q235 | ||||||||
Anticorrosion | Hot-dip Golvanized | ||||||||
Powder Coating | Silver Gray(RAL 7001) | ||||||||
Wind Speed | 144kmh |
Features:
●The yield stength of Q235 is 235Mpa,which is strong enough;
●The Q235 has good welding and forming performance, which can avoid weld crack;
●The galvanized thickness is more than 75um, which can protec the plole from corrosion for more than 25 years;
●The powder coated color can be cutomized;
●Use standard maintenance door, which can lower the cost; it also can be customized;
●The anchor bolt position is fixed based on flange dimension, which is easy for pole assembly;
●The anchor bolt can be folded to save room for transportation.
Pole Height H1 | 4m | 5m | 6m | 7m | 8m | 9m | 10m | 11m | 12m |
Shape | Conoid | ||||||||
Arm Length H3 | 400mm | 500mm | 600mm | 700mm | 800mm | 900mm | 1000mm | 1100mm | 1200mm |
Arm Angle | 15° | ||||||||
Top Diameter D1 | φ60mm | φ60mm | φ60mm | φ60mm | φ60mm | φ60mm | φ60mm | φ60mm | φ60mm |
Bottom Diameter D2 | φ120mm | φ130mm | φ145mm | φ160mm | φ175mm | φ185mm | φ195mm | φ210mm | φ230mm |
Pole Thickness | 2mm | 2.3mm | 2.5mm | 2.75mm | 3mm | 3.25mm | 3.5mm | 3.75mm | 3.75mm |
Flange Size | 240*240mm | 240*240mm | 260*260mm | 280*280mm | 280*280mm | 300*300mm | 300*300mm | 320*320mm | 350*350mm |
Flange Thickness | 10mm | 10mm | 12mm | 14mm | 16mm | 18mm | 18mm | 20mm | 20mm |
Maintenance door Size | 170*70mm | 170*70mm | 170*70mm | 170*70mm | 170*70mm | 170*70mm | 200*100mm | 200*100mm | 200*100mm |
Maintenance door Height H2 | 300mm | 300mm | 300mm | 300mm | 500mm | 500mm | 500mm | 500mm | 500mm |
Anchor Bolts | 4-M12*400mm | 4-M12*450mm | 4-M14*500mm | 4-M16*600mm | 4-M18*650mm | 4-M20*700mm | 4-M20*750mm | 4-M24*800mm | 4-M24*850mm |
Tolerance of Dimension | ±2% | ||||||||
Material | Q235 | ||||||||
Anticorrosion | Hot-dip Golvanized | ||||||||
Powder Coating | Silver Gray(RAL 7001) | ||||||||
Wind Speed | 144kmh |
