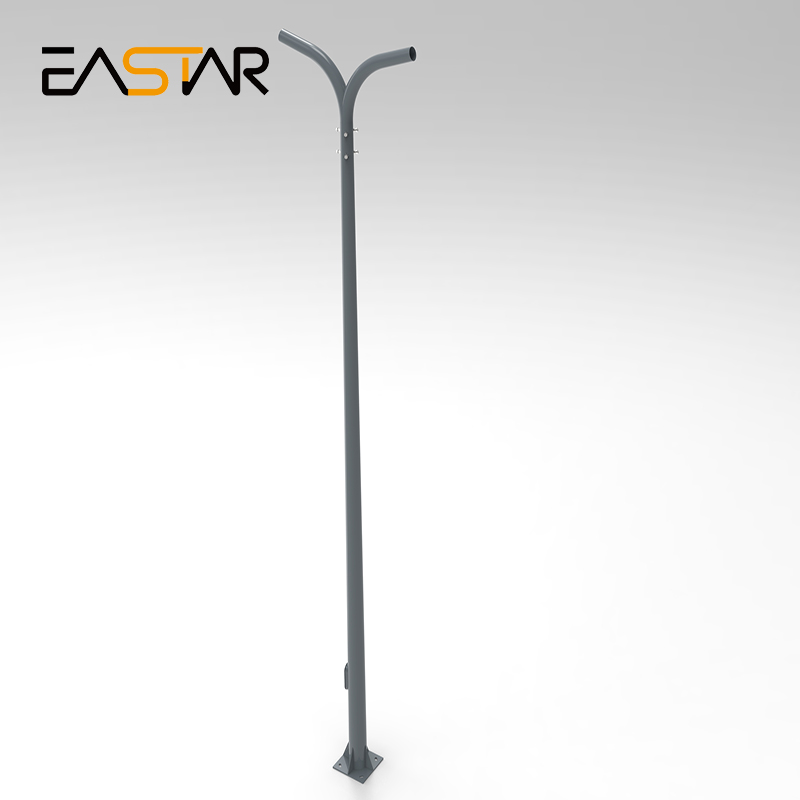

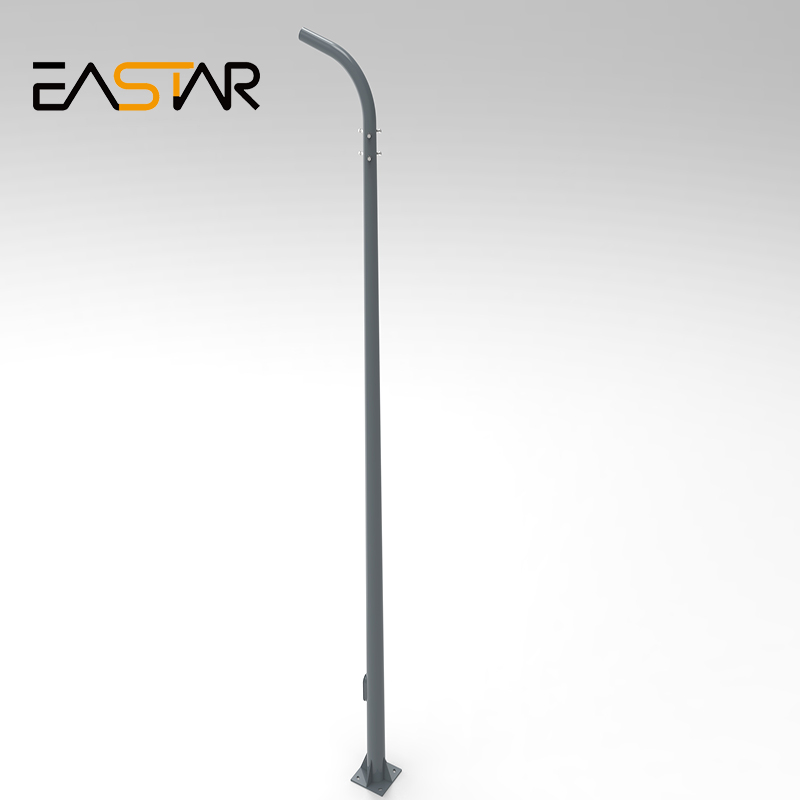

Street Light Pole (YSD-LDDG-A1)

Out street light poles can be crafted from steel, aluminum, concrete, wood or fiberglass.
Quantity:

Features:

The yield stength of Q235 is 235Mpa,which is strong enough;

The Q235 has good welding and forming performance, which can avoid weld crack;

The galvanized thickness is more than 75um, which can protec the plole from corrosion for more than 25 years;

The powder coated color can be cutomized;

Use standard maintenance door, which can lower the cost; it also can be customized;

The anchor bolt position is fixed based on flange dimension, which is easy for pole assembly;

The anchor bolt can be folded to save room for transportation.

Pole   Height H14m5m6m7m8m9m10m11m12m
ShapeConoid
Arm Length H3400mm500mm600mm700mm800mm900mm1000mm1100mm1200mm
Arm Angle15°
Top Diameter   D1φ60mmφ60mmφ60mmφ60mmφ60mmφ60mmφ60mmφ60mmφ60mm
Bottom   Diameter D2φ120mmφ130mmφ145mmφ160mmφ175mmφ185mmφ195mmφ210mmφ230mm
Pole Thickness2mm2.3mm2.5mm2.75mm3mm3.25mm3.5mm3.75mm3.75mm
Flange Size240*240mm240*240mm260*260mm280*280mm280*280mm300*300mm300*300mm320*320mm350*350mm
Flange   Thickness10mm10mm12mm14mm16mm18mm18mm20mm20mm
Maintenance   door Size170*70mm170*70mm170*70mm170*70mm170*70mm170*70mm200*100mm200*100mm200*100mm
Maintenance   door Height H2300mm300mm300mm300mm500mm500mm500mm500mm500mm
Anchor Bolts4-M12*400mm4-M12*450mm4-M14*500mm4-M16*600mm4-M18*650mm4-M20*700mm4-M20*750mm4-M24*800mm4-M24*850mm
Tolerance of   Dimension±2%
MaterialQ235
AnticorrosionHot-dip Golvanized
Powder CoatingSilver Gray(RAL 7001)
Wind Speed144kmh
